Researchers from the University of Miyazaki in Japan have published a report about progress on reproducible tests and protocols that address the challenges of measuring the performance of curved vehicle-integrated photovoltaic (VIPV) modules.
In the study “Testing and rating of vehicle-integrated photovoltaics: Scientific background,” published in Solar Energy Materials and Solar Cells, the research team said its work addressed the unique aspects of VIPV modules, such as curvature, and irradiation impact caused by shading, partial-shading, dynamic shading, and uneven terrain conditions.
“The standard calculation for PV systems often relies on simplified assumptions, such as the absence of shadows, flat terrain, static installations, and uniform solar irradiance,” co-corresponding author, Kenji Araki, told pv magazine. “However, these assumptions do not accurately reflect real-world conditions. It is essential to consider actual imperfections, including the presence of shadows, uneven terrain, movable PV systems, and non-uniform solar irradiance. Although these factors are not commonly discussed, they significantly affect the performance of PV systems in practice.”

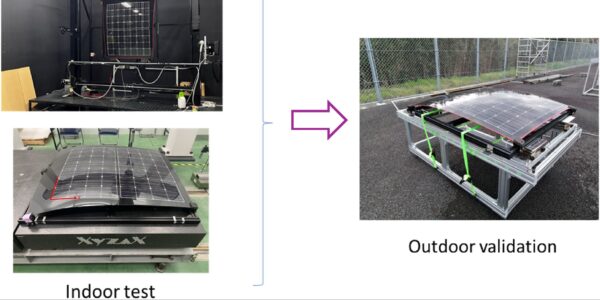

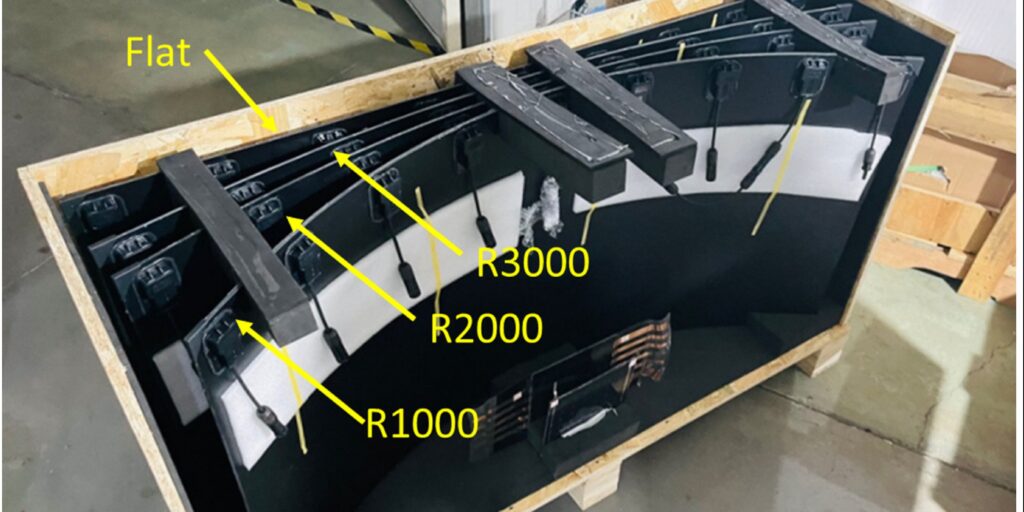

The team carried out initial testing of new protocols and validation at geographically diverse laboratories and research institutes, as well as solar simulator testing applying agreed protocols using the same calibration data, as well as blind tests. For round-robin tests, Nanjing AGG Energy, China, provided glass-covered rigid modules, including four levels of the radius of curvatures.
The group noted at least eight key differences to be addressed to achieve accurate models and measurements for VIPV products. For example, using a local coordinate system that includes 3D rotation, capturing the shading zones for vehicle doors, hood, bumper, and rear windscreen.
Vector computations based on a shading matrix are required, rather than shading ratio or angle. Tensor forms, 4-Tensor, are used for the angular response to the incident light, instead of the Lambartian curve, and rather than cosine loss by angles of the PV panel, differential geometry description using vector expression of a unit element is used, noted the researchers.
Some of the differences were summarized by Araki. “In the new model, a shading matrix accounts for non-uniform shading on the hemispheric sky. “In contrast, the classic analysis relies on a scalar shading ratio,” he explained, adding that the new method considers solar cells with curved surfaces and analyzes them using principles of differential geometry, “unlike the classic calculation, which assumes solar cells have a flat surface.”
Furthermore, the new model uses ray tracing “performed in vector form” instead of using a cosine approach, and rather than representing the angular response and incident angle modification (IAM) as curves based on the incident angle, “the new calculation depicts these as four tensors.”
Looking ahead, the researchers plan to develop a “fuel-saving estimation tool” for trucks and buses with PV panels. The validation based on monitoring 130 trucks, so far, is ongoing, according to Araki. In addition, there are other projects planned to address challenges in testing modules developed for agrivoltaics, building integrated PV, as well as alpine PV and aircraft-integrated PV, such as high-altitude pseudo satellites (HAPS).
The research work is the result of the collective contribution of members of the IEC TC82 PT600 initiative that aims to establish standards for VIPV systems.
