The roofs of two adjacent office buildings in Sydney’s Barangaroo precinct have provided researchers a rare glimpse at the real-world effects of green roofs on solar arrays. The findings are substantial – in comparison to the conventional roof, the solar array fitted above beds of plants had an average daily power output 39 kW, or 13.1%, greater.

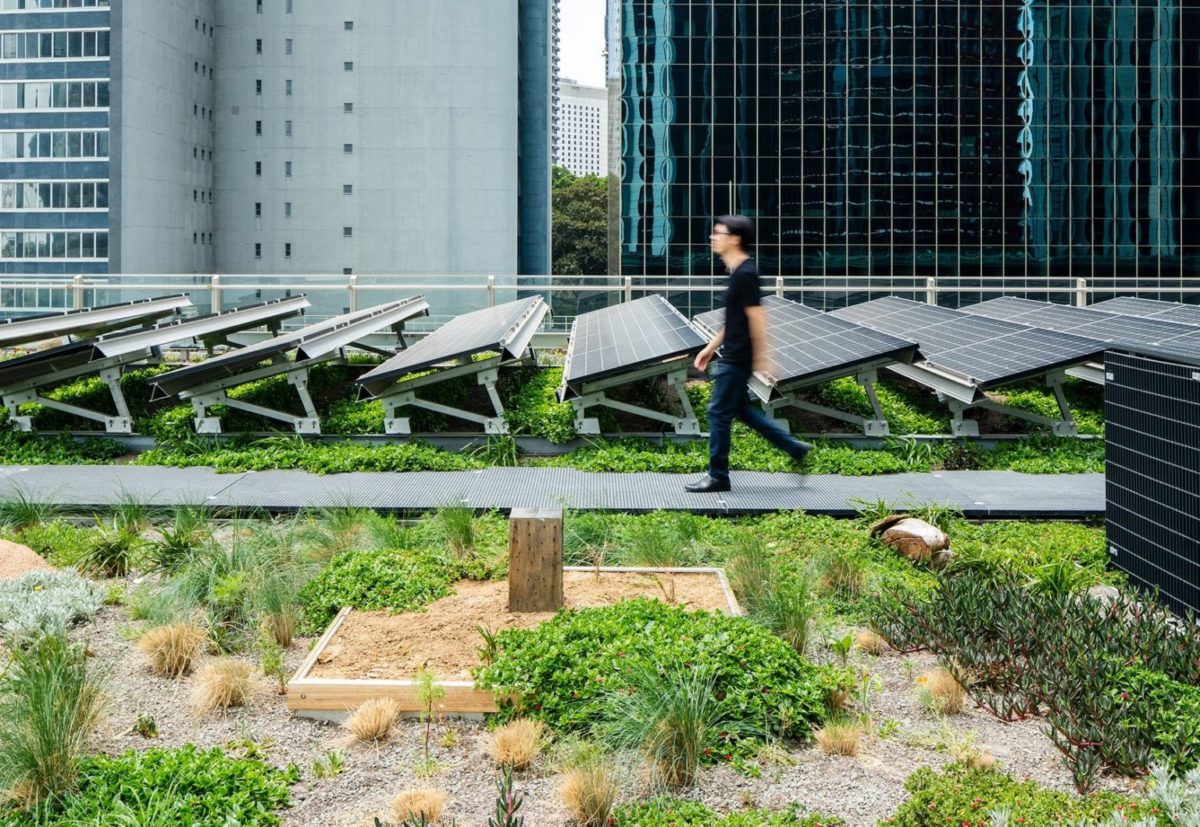

The study was led by Peter Irga from the University of Technology Sydney and funded by the City of Sydney Council, with research carried out on International House’s conventional array and Daramu House’s green roof array, known as a bisolar roof.
Both roofs generated substantial quantities of solar energy over the eight months they were studied, with the conventional roof yielding 59.5 MWh, while the green roof produced 69 MWh.
“Despite the similarities in build and location, the effect of urban geometry on solar irradiance on each rooftop is made evident outside of the hours during which the sun is near/at its solar peak… During these hours, the green roof produced an average energy output that was greater than the conventional roof by ~ 6 %. Prior to, and after these hours, the influence of urban geometry confounds the reportable efficiencies (-3.6 to 16 %)” the study read.
After correcting for these differences, the panels on the green roof were found to be, on average, 3.63% more efficient on any given day. Following on from that, over the eight-month study period the green roof produced an additional 9.5 MWh of green electricity, corresponding to a retail market value of $2,595.
This efficiency boost is thought to stem from the fact the green roof remained far cooler than the traditional concrete one during the day, meaning the panels did not overheat and therefore underperform. In some instances, the green roof was as much as 20°C cooler, with its temperatures also fluctuating far less in the evening.
Rare insight
While increasingly popular, there is currently a lack of research confirming the benefits of green roofs. Furthermore, “there is very little research that compares similar buildings which are exposed to similar environmental conditions by virtue of close proximity,” the study noted.
In addition, the significant increases in its solar array’s output, the green roof was also found to have a nine-fold increase in insect species diversity, as well as a four-fold increase in avian species diversity. It also saw reductions in some air pollutants, improved stormwater management, improved building insulation.
“For the size of the positive impacts generated relative to the costs, green infrastructure is perhaps the easiest and most efficient initiative we can make to help make our cities sustainable,” the study read.
The study’s authors described their findings as “substantial,” though they noted just two roofs were monitored.
