Perovskite solar cell technology has come a long way in a relatively short time, but there are still plenty of issues that need to be ironed out to support large-scale production.
Scientists at the University of North Carolina (UNC) say that one of these issues is the annealing (heating and slow cooling) process that perovskites undergo. Many fabrication processes take too long, presenting a significant bottleneck in mass production. The UNC scientists estimate that for long annealing times to keep up with the speed at which perovskites films are produced, manufacturers would need a 500-meter-long oven.
The UNC scientists said that cutting this annealing process down to three minutes at 100 C could actually lead to better performance. The group puts this down to a previously unknown de-doping process within the perovskite, which ultimately leads to lower recombination losses and better efficiency.
After fabrication

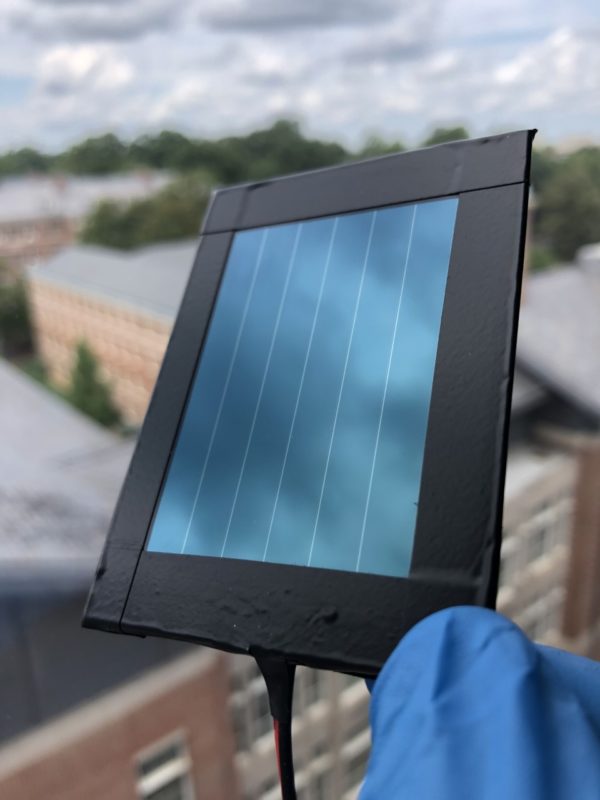

The group fabricated perovskite (methylammonium lead iodide) devices using a blade-coating process, and compared identical devices that had been annealed for three and 20 minutes, respectively. Both devices initially recorded an open-circuit voltage of 1.14 V, but after 20 days aging in the dark, the three-minute device had increased to 1.20 V, while the 20 minute device had slightly decreased to 1.13 V.
Examining both devices, the group discovered a ‘de-doping’ process was at work in the shorter annealed device, but not in the long one. “The short annealing treatment maintains the stoichiometric composition of perovskite and allows a notable spontaneous de-doping process,” state the researchers. “[This] is absent in perovskite films treated with conventional long annealing.”
They describe the de-doping process in “Reduced Self-Doping of Perovskite Induced by Short Annealing for Efficient Solar Modules,” which was recently published in Joule. Further experimentation suggests similar effects are present in cesium- and formamidinium-based perovskites, as well.
The process was shown to continue in completed devices as well as perovskite films, so the researchers suggest that in the commercial space, manufacturers could take advantage of storage and shipping periods post-production for the modules to reach maximum efficiency, while increasing throughput and eliminating an expensive heating stage in production.
This content is protected by copyright and may not be reused. If you want to cooperate with us and would like to reuse some of our content, please contact: editors@pv-magazine.com.
1 comment
By submitting this form you agree to pv magazine using your data for the purposes of publishing your comment.
Your personal data will only be disclosed or otherwise transmitted to third parties for the purposes of spam filtering or if this is necessary for technical maintenance of the website. Any other transfer to third parties will not take place unless this is justified on the basis of applicable data protection regulations or if pv magazine is legally obliged to do so.
You may revoke this consent at any time with effect for the future, in which case your personal data will be deleted immediately. Otherwise, your data will be deleted if pv magazine has processed your request or the purpose of data storage is fulfilled.
Further information on data privacy can be found in our Data Protection Policy.
