From pv magazine USA
Some of it is the pending drop-down of the Investment Tax Credit from the end of 2019 through the end of 2023. Some of it is a series of decisions by states, cities and corporations to decarbonize their electricity supply, and to use solar as a main means of doing this. And some of it is the continual decline in PV system prices, which makes large-scale solar the cheapest form of new generation in much of the United States.

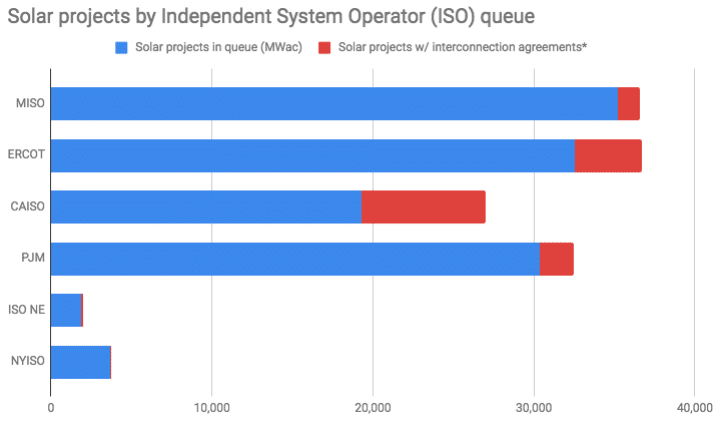

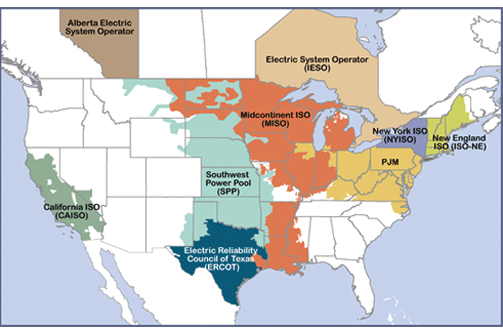

But whatever the cause, there is an unprecedented, massive volume of solar projects that is underway in the United States. Research conducted by pv magazine USA has uncovered more than 139 GWac of solar projects which have applied for interconnection with six grid operators (CAISO, NYISO, ISO-NE, MISO, PJM, ERCOT) by the end of December 2018, spanning the Northeast, Midwest, California and Texas.
For perspective, Wood Mackenzie estimates that there was only 34 GWdc of large-scale solar online at the end in the third quarter of 2018. When you convert that figure to AC power, it means that the new capacity being considered is around five times as large.
There are other reports looking at upcoming capacity, and they do vary greatly – which ought remind us all that much of what is in a queue won’t move forward. ISO New England estimates that 70% of the projects in its queue never see the light of day.
However, more than 15 GWac of solar projects in these six grids either already hold interconnection agreements, or have entered the engineering and procurement phase.* The largest portion of these is in California, but there are also more than 4 GWac of projects in Texas that hold interconnection agreements.
Our investigation showed solar project development going truly national. In fact, the California Independent System Operator (CAISO) grid has a smaller volume of solar projects in its interconnection queue than the Midcontinent System Operator (MISO), Electricity Reliability Council of Texas (ERCOT) or PJM Interconnection, each of which have more than 32 GWac of solar projects in their queue. Unlike California, the large majority of project volume in all three has been proposed in 2017 and 2018 and these regions had all seen limited large-scale solar market development until a few years ago.
Even more to come
It is important to remember that these grids don’t cover the entire United States, and as such this 139 GWac does not include projects in the majority of the South, Mountain West, Pacific Northwest and Plains States. And we aren’t seeing these massive projects only in databases, either. As documented in pv magazine USA’s year-end coverage, we have found large solar projects either planned or under construction in 17 states that have not had substantial solar markets to date.
The signals of a boom to come in the U.S. solar market is reinforced by other data sources. The Federal Energy Regulatory Commission’s (FERC) monthly Energy Infrastructure Update (located under Energy Infrastructure tab) gives estimates of future capacity, and the latest report shows 63 GWac of proposed solar project additions before the end of 2021.
A quarterly report by Stephanie Tsao and Ellen Meyers of S&P Global Market Intelligence estimates that the U.S. utility scale solar project pipeline through 2022 has expanded to 33.9 GWac.
In these estimates by S&P, grid operators reports and FERC, we are only talking about large utility-scale projects. These numbers do not include smaller systems such as rooftop solar either on the homes or businesses of utility customers. Data from other projections suggest that another 4-5 GWdc is coming from residential and commercial solar combined. Adding that volume to the S&P projections with a DC:AC ratio of 1.25:1 applied, suggests that the United States might build 18 GWdc of solar power in 2019, and just over 19 GWdc in 2020.
Energy storage boom
The six grid operator queues we investigated also showed more than 16 GW of battery projects which have filed for interconnection. And this number should not be too surprising to anyone who is watching the meteoric growth of energy storage.
Per the US Energy Storage Monitor, from Wood Mackenzie Renewables & Power along with the Energy Storage Association (ESA), total energy storage deployed expanded by 60% in terms of energy and 300% on a power basis in the third quarter of 2018 versus the prior year. Going out mostly until 2023, the report noted that the front of the meter pipeline expanded to approximately 33 GW of power.
The next five years are going to be truly massive for solar and energy storage. Hold on to your seats.
*Editor’s note: PJM Interconnection did not have a list of projects with interconnection agreements, but did list projects which had entered the engineering & procurement stage of development.
This content is protected by copyright and may not be reused. If you want to cooperate with us and would like to reuse some of our content, please contact: editors@pv-magazine.com.
So US operators are planning 210 GW of new capacity by 2021, split about equally between gas, wind and solar. The entire surviving US coal fleet is 249 GW. GTM reported in August on an estimate that half the US coal fleet will go by 2030. This is now looking far too conservative. Even if you allow for lower capacity factors, this tsunami of low-cost competition spells doom for coal. With structurally flat demand (any upside from EVs is balanced by the downside from LEDs and Alexa), half the remaining coal capacity will be gone in five years.
One of the things to look at also is the changes in planned additions in gas, solar and wind. If you compare Dec 2017 FERC pipeline data with Nov 2018 data you will see the pipeline for solar and wind expanding and the one for gas shrinking:
Solar:
Dec 2017: current cap=30.30GW, add=1,861u, 47.071GW, retire=5u, 0.002GW
Nov 2018: current cap=35.05GW, add=2,236u, 64.068GW, retire=5u, 0.002GW
Solar gained 4.75GW in installed capacity and planned additions grew 16.997GW. If the 64GW of proposed additions occur this would be triple the amount of installed solar capacity – in 3 years. Planned capacity additions grew 36% from the end of 2017 to Nov 2018.
Wind:
Dec 2017: current cap=88.53GW, add=464u, 79.770GW, retire=2u, 0.068GW
Nov 2018: current cap=92.74GW, add=505u, 90.318GW, retire=1u, 0.050GW
Wind added 4.21GW in installed capacity and the planned additions grew 10.548GW (13%). If the 90GW of proposed additions occur this would double wind capacity.
NG:
Dec 2017: current cap=517.1GW, add=380u, 92.708GW, retire=118u, 10.803GW
Nov 2018: current cap=525.96GW, add=263u, 67.962GW, retire=109u, 11.081GW
NG added only 8.86GW in installed capacity and the planned additions went down 24.818GW (26.77%). The addition pipeline for NG is still very large, but it’s a good sign that it dropped in the 11 months since the end of 2017.
Glad to see coal is going away despite the best efforts of the insane administration to boost coal and the lies about “clean” coal from the industry itself. The stuff is dirty because its dug up from the ground and it contains everything else from the ground when its burned (including Uranium and other biohazardous radioactive elements.
On that note, Nuclear needs to go buh-bye a well. It’s yet a different kind of environmental and economic disaster risk. We don’ have a Chernobyl in our back yard yet, but do we really want to wait until we have one to prevent further future Fukushimas from happening here? The risk is simply too great and the promise of cheap nuclear power went out the window long ago with realizing how much maintenance and cost there is to keep those plants running and how those costs escalate with the aging of the nuclear plants. Southern California Edison was correct to shutter their last plant in SoCal. They still don’t have a great plan for what to do with the waste. Right now ignorantly enough they plan to store it near the shore.. Just a tsunami away from a major nuclear incident involving released spent nuclear fuel.
Strange people are wasting their money investing in these solar farms. The first one built is a complete failure. Works great during the long days of summer but it uses NG to produce when the sun isn’t even setting yet until the sun is up to the 10 o’clock range in AM.During the winter months only runs about 4.5 hours a day the rest of the time it uses fossil fuels an’t produce electricity without sun. All these are ideas but none will ever replace generating plants unless we cover ever square in of land in this country and the every mile of the coast line .
Hi John,
You are confusing concentrating solar thermal (power tower and trough solar thermal systems) with PV (solar electric) systems. Also the land areas required are actually quite modest.
